Company Profile Elettronica Santerno SpA designs and markets inverters (for the production of electricity from renewable sources), drives and soft starters for industrial and hybrid applications. Since 2006 it has been part of the Carraro Group, a multinational specialised in power transmission systems, with production premises and engineering centres in more than 16 countries worldwide.
Involved for more than 40 years in research applied to power electronics, Santerno develops its projects wholly independently, thanks to know-how consolidated over the years and to patents based on utilisation of the most advanced digital technologies, the fruit of continual investment in research and ongoing collaboration with the most prestigious scientific institutes in Europe and the most important Italian universities. Fields of specialisation are: Drives for industrial applications such as inverters for water pumping and treatment, conditioning systems, regenerative overhead cranes and high power conveyor belts Photovoltaic inverters Inverters for wind generators Hybrid systems of electric traction Quality is the crucial point of all activities at Santerno, a company that puts itself forward as a reliable partner in the creation of efficient and technologically innovative solutions, offering the customer a remote web-based system of inverter monitoring and a vast range of pre- and after-sales services. The keys to Santerno's Success: Technologically advanced products Consolidated know-how Part of a solid international group Customer-oriented Global network of business partners and service centres The company in a nutshell: Headquarters: Imola, Italy Established: 1970 Turnover: > € 144 mn. (2010) N° of employees: 255 Areas of product application: 40 years in industrial automation, 25 years in the photovoltaic inverter sector, 12 years in the hybrid vehicles field, 4 years in the wind inverter sector 2 production premises in Italy: Imola and Castel Guelfo 2 sales offices in Italy: Milan and Rome 5 branches abroad: Spain, Russia, USA, Brazil and China 3 sales offices abroad: Germany, India and Canada More than 40 distributors worldwide

	MJ-MA Asynchronous motors Asynchronous three-phase, electric motors with squirrelcage rotors, class F insulation, class B overtemperature, IP55 protection degree, multivoltage 380...480Vac (690Vac), multifrequency 50/60Hz.

Inverters

	Sinus Penta IP54 The Sinus series offers, moreover, a range with IP54 protection degree suitable for environmental conditions with strong presence of dusts and water (up to Sinus 0162). Thanks to its robust metallic structure suitable for external installation, it is not necessary to insert this model into any electric cabinet. Main supply, Motor supply and Control board connection are reachable from below by means of the insertion of suitable cable-bushings. It is also possible to add a complete operation board on the front door for the emergency command and the selection of the following 3 functions by key lock selector: LOCAL (LOC) It is possible to operate and adjust Motor speed by the inverter’s keypad (Start, Stop and Speed adjustment). 0 (ZERO) In this position, the inverter is unable to work. REMOTE (REM) It allows to manage the inverter according to its programming by terminal board, serial port or fi eldbus.

	Sinus Penta 5-function, all purpose inverter, up to 3000 kW Wide power supply voltage range, 200Vac÷690Vac DC power supply range 280÷970Vdc Input frequency 50 - 60Hz Power range 1,3 - 3000kW Enclosure IP00, IP20, IP54 Available in stand-alone and cabinet solutions Full compatibility with teleservice software, “REMOTE DRIVE” on internet Compatible with Easy Harmonics, tool for the calculation of Harmonic currents

	Sinus Penta Cabinet Inverter in cabinet Power range 12,5 - 3000 kW Input frequency 50 - 60Hz Wide power supply voltage range, 200Vac - 690Vac. Full compatibility with teleservice software “REMOTE DRIVE” on internet

	Sinus Penta Box Inverter in box IP54 Wide power supply voltage range, 200Vac - 500Vac. Input frequency 50 - 60Hz Power range 1,3 - 90kW Full compatibility with teleservice software “REMOTE DRIVE” on internet

	Sinus N Sensorless vector control or V/F inverter 200 - 230Vac single phase power supply Power range 0,4 - 3kW Full compatibility with teleservice software “REMOTE DRIVE” on internet

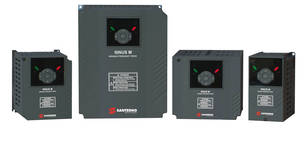

	Sinus M Sensorless vector control or V/F inverter 200 - 480 Vac power supply Power range 0,37 - 22 kW Full compatibility with easy armonich, tool for the calculation of armonich currents Full compatibility with teleservice software “REMOTE DRIVE” on internet

	Sinus K Lift Vector modulation Lift Software for lift applications Wide power supply voltage range, 200Vac - 500Vac Input frequency 50 - 60Hz Power range 1,8 - 75 kW Full compatibility with teleservice software “REMOTE DRIVE” on internet

SOFT STARTER

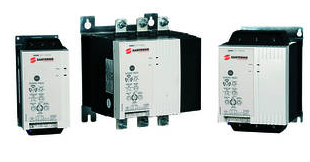

	ASAC0 / ASAC1 Soft starter Soft start/stop static starters for three-phase asynchronous motors Range 7,5kW - 110kW Power supply voltage range 200 - 575Vac Internal By-pass Contactor Input frequency 50 - 60Hz Full compatibility with teleservice software “REMOTE DRIVE” on internet

	ASAB Soft starter Soft start/stop static starters for three-phase asynchronous motors The ASAB is an advanced digital soft start solution for motors from 7 kW to 800 kW. ASAB soft starters provide a complete range of motor and system protection features and have been designed for reliable performance in the most demanding installation situations

	ASAMV Soft starter Soft start/stop static starters medium voltage Range 200A a 600A Power supply voltage range, 2300Vac - 15000Vac Input frequency 50 - 60Hz Full compatibility with teleservice software “REMOTE DRIVE” on internet

AC/DC convertor

	DCREG2-DCREG4 AC/DC digital converters, two quadrant DCREG2, four quadrant DCREG4 Power range 10A - 4500A (2,4kW - 3200kW) Wide power supply voltage range, 200Vac - 690Vac (1000 Vac) Input frequency 50 - 60Hz Full digital Full compatibility with teleservice software “REMOTE DRIVE” on internet

	CU400 for Electromagnets The Thyristor converters DCREG series now offers the possibility to manage highly inductive loads such as electromagnets. The load’s typology, assimilable to an ohmic resistor placed in series to a very high inductance, creates some applicative problems which have been efficaciously solved inside the DCREG by means of a control algorithm especially developed for this aim. The fact that the load has a high inductance level causes some functional safety problems which show themselves when, for failures or critical installation, an interruption on one of the main supply meshes is possible. Such interruption, along with the high inductive level of the magnet, can provoke strong sudden overvoltages which may even reach some thousands of Volts. It is not anyway possible to protect the converter against such overvoltages, except if you take specifi c measures while installing it. The most effi cacious method consists in providing a closing mesh on the magnet’s current, thanks to a special system called CU400. The energy accumulated into the magnet is “absorbed” and stocked into a clamping circuit of RC type, in which the function of overcurrent limiting is ensured by the inner capacitor, while the subsequent dissipation of such energy is ensured by the inner resistor. If a power supply conducting mesh is physically interrupted (because of wiping contacts or other) or the connecting cables between magnet and converter open, the voltage arc generated by the current interruption is limited by the clamping circuit able to limit overvoltage, taking it to safe values. For this reason, the above confi guration is necessary in case of electromagnets installed on bridge cranes on which the 3phase power supply comes the main supply by means of wiping brushes which might occasionally open.

	AMS90/1 Half-controlled AC/DC single-phase drive Half-controlled AC/DC single-phase drive used to supply armature and field circuits of D.C. motors, with analog circuit for speed or torque control.

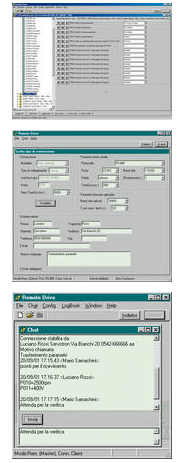

	Remote Drive Communication interface and management software A programming and diagnostics utility that works Windows, for all Santerno drives. It offers the following tools: data reception, transmission and saving, from a PC and onto a PC keyboard emulator on the machine parameters’ programming and storing parameters’ print graphic display of electric values data logger firmware update Remote service A simple Internet connection allows Remote Drive to get our engineers onto your plants. Our drives can be reached all over the world, at the cost of a local telephone call Accurate and simple diagnostics upon the operating state of our drives Remote control Programming assisted by expert personnel Graphic display of the electric values In the page called “Connection Selection” (Choose the connection type), the following defi nitions are specified: - Configuration of the remote connection - Information data about the user - Protocol and parameters of the PC serial port Chat Software that assists the real-time communication between our engineers and the technicians on the field.

Solar Energy: PV Products overview In the field of photovoltaic energy Santerno has been a national leader in conversion systems for 25 years, with 2 Gigawatts of inverters installed. It offers a vast range of solutions for all requirements: single-phase machines for low power plant (up to 45 kW),three-phase for medium (from 10 to 500 kW), with input string box in low and hook-up in low or medium voltage, and integrated Sunway Station “plug & play” solutions for large plant over 400 kW. Thanks to consolidated know-how, Santerno's in-house team defines and designs all the mechanics, software, control algorithms and power electronics. The products are devised in a modular key with view to customised solutions, since there is a wide range of integrable components. For worldwide utilisation, moreover, all Santerno solar inverters are built in conformity with the regulations in force in the various countries. The result of experience gained in the industrial automation field, Santerno solar inverters are easy to maintain and guarantee continuity of performance for greater yield. The key to Santerno's success is product reliability, achieved by the sizing and quality of standard components, together with quality controls on design and production throughout the process, in accordance with strict international standards. A global network and a complete pre- and after-sales service ensure that customer assistance is never far away. Through an innovative telecontrol system (Sunwayportal) users can obtain, online, plant information and updated data; as well as check the status of correct functioning and production at any moment to verify economic yield. Associated with the telecontrol there is a service of integrated string disconnection monitoring, in function 24 hours a day, with applications for mobile phones, web 2.0 services and notification of anomalies by text message or email.

Wind Energy Wind Products overview With a long track record in the industrial and photovoltaic field, Santerno designs and manufactures wind turbine inverters of various sizes. A constant ear to our partners’ needs and the fostering of collaboration between customer and Santerno Engineering mean highly personalized products, with dedicated software, that satisfy all the requirements of the most varied wind power systems. A wide range of accessories is also available. All our products are designed for global use and are therefore certified in accordance with standards set by the major world markets.
