Alfa Laval AB is a leading global provider of specialized products and engineered solutions.
Our equipment, systems and services are dedicated to helping customers to optimize the performance of their processes. Time & time again. We help our customers to heat, cool, separate and transport products such as oil, water, chemicals, beverages, foodstuffs, starch and pharmaceuticals .



Alfa Laval Logo

Alfa Laval Heat Exchanger Technology
Plate heat exchangers are designed to optimize heat transfer, because of corrugated plates provide by far the greatest surface area through which the heat can be drawn from one gas or liquid to the other. Despite this substantial area for heat transfer, plate heat exchangers are usually very compact comparing to traditional exchangers. The design of channels also ensures maximum turbulences as each fluid passes through. This results in maximum efficiency in transferring heat from one medium to the other.



Advantage of Plate Heat Exchangers

  1. Higher efficiency

  2. Very compact

  3.  Low capital and installation cost

  4. Higher turbulence & less fouling

  5. More energy savings because of close temperature approach

  6. Low hold-up volume

  7. Easy maintenance

Alfa Laval Heat Exchanger

Nowadays plate heat exchangers are using is the most of industries like steel, mining, power, chemical & petroleum, refrigeration & HVAC, central cooling, sugar, starch , beverage, milk, wine, ..

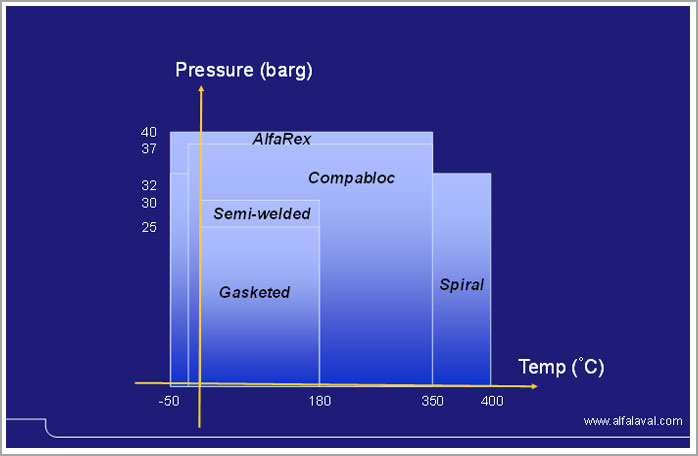

Different types of plate heat exchangers have been developed. Pressure, temperature, type of fluids, process & operational functions will specify the best type of PHE for each duty.



ALfa Laval

Gasketed  PHE are the most common PHE type and used in many industries especially for water –water duties, food industries or oil coolers

Gasketed plate heat exchanger PHE

Semi-welded PHE, when one fluid is dangerous or very corrosive we can send it through welded channels. Alfa evaporators and condensers are semi-welded PHEs

Semi-welded plate heat exchangers

Alfa Rex, is a fully welded PHE for high temperature & pressures but for clean duties only.

AlfaRex

Brazed PHE are fully welded PHEs us, the brazing material seals & holds SS plates together, the most common applications are oil coolers, water heaters or steam heaters, HVAC & refrigeration condensers

CB - Copper-brazed heat exchanger

Compabloc is a magic box which is fully welded while this is fully accessible. It can be used in most of processes especially for high pressure & temperatures.

Compabloc

Spiral Heat Exchanger is a fully welded PHE with single channel design. Spiral Heat exchangers are used for very fouling duties and extremely high viscose fluids

Spiral heat exchanger

Alfa Laval Air Heat Exchangers
Alfa Laval air heat exchangers are designed based on minimum electricity consumption, low space, low noise & low maintenance costs

Application:
-Air heater Or Air cooler (HVAC)
-Water Cooler or Oil cooler in the industrial close cooling system
-Steam Condenser (Industrial applications)
-Refrigerant condenser (HVAC &Ref)



Alfa Laval Air Heat Exchanger

Alfa Laval Separation & filtration technology

Centrifugal Separator
Alfa Laval High speed separators are used as purifier & clarifier for many industries.
Dairy separator, oil separator & fuel separator are the most common separator types.

Culturefuge



Decanter
Alfa Laval Decanters are used for de-watering or concentration systems for wine, fruit juice, beverage, Starch& paper processes
They also are used in environment application for sludge recovery

Foodec

Automatic Back Filter

An automatic back flushing system is used to remove big particles (min 0.1 mm) from the fluid. The main application is filtering sea water.

ALF - Alfa Laval Filter

Membrane filters (RO)

Alfa Laval Membrane filtration system are used in dairy , food &  beverage industries, Our superior product quality  together with  optimized process will help customers to have a reliable operation with minimum costs.

Membrane filtration systems

Alfa Laval Fluid Handling Equipment

LKH pumps
for Sanitary & food application

LKH centrifugal pumps

Mix proof valve

 for Sanitary & food application

Unique mixproof valve

SX/SRU rotary lobe pump
for Sanitary & food application

SRU rotary lobe pump

Butter fly valve

for Sanitary & food application

LKB butterfly valves

Installation material
SS 304 & SS 316 tube and fitting

Hygienic Tubes and Fittings

Tank cleaning equipment

Rotary jet head (Sanitary)

Alfa Laval has more than 100 years experiences in the food & drink applications, his products are the key equipment in the milk, beverage, starch, wine & vegetable oil processes and he has a deep process knowledge helping customers to improve their processes.



Milk Pasteur

Alfa Laval Milk Pasteur

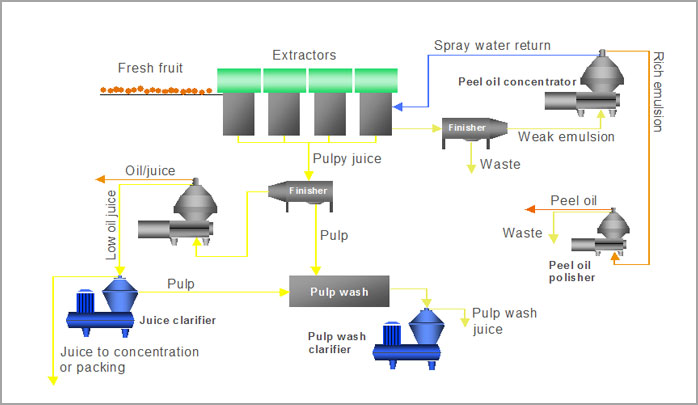

Beverage Proces
Alfa Laval Beverage Process


Alfa Laval key technologies are adapted to each customer segment and offered separately or
combined into optimized solutions
